UIBistateInteractivePanel Class Reference

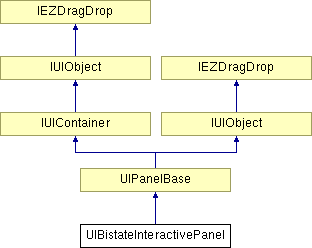

Inheritance diagram for UIBistateInteractivePanel:
UIPanelBase IUIContainer IUIObject IUIObject IEZDragDrop IEZDragDrop

List of all members.

Public Types

enum  STATE { SHOWING, HIDDEN }


Indicates the state of the button.

More...

Public Member Functions

override void OnInput (POINTER_INFO ptr)
 This is where input handling code should go in any derived class.
override void StartTransition (UIPanelManager.SHOW_MODE mode)
 Starts one of the panel's "bring in" or "dismiss" transitions.
void Hide ()
 Hides the panel by invoking its Dismiss Forward transition.
void Reveal ()
 Reveals the panel by invoking its Bring In Forward transition.
delegate void TransitionCompleteDelegate (UIPanelBase panel, EZTransition transition)
void AddChild (GameObject go)
 Reference to the parent UIView.
void RemoveChild (GameObject go)
 Removes an object as a child of the container.
void MakeChild (GameObject go)
 Makes the specified GameObject a child of this panel, including making it a child of the panel's transform.
void AddSubject (GameObject go)
 Adds a GameObject as a subject of this panel's transitions.
void RemoveSubject (GameObject go)
 Removes a GameObject as a subjects of this panel's transitions.
EZTransition GetTransition (int index)
 Returns a reference to the transition at the specified index.
EZTransition GetTransition (UIPanelManager.SHOW_MODE transition)
 Returns a reference to the specified transition.
EZTransition GetTransition (string transName)
 Returns a reference to the specified transition.
virtual void StartTransition (string transName)
 Starts the transition matching the specified name (case-insensitive).
virtual void BringIn ()
 Brings in the panel by playing its "Bring In Forward" transition.
virtual void Dismiss ()
 Dismisses the panel by playing its "Dismiss Forward" transition.
void AddTempTransitionDelegate (TransitionCompleteDelegate del)
 Temporarily adds a delegate to be called when the next transition completes. This will be unset after it is called.
virtual void SetInputDelegate (EZInputDelegate del)
 Sets the method to be called when input occurs (input is forwarded from OnInput()). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddInputDelegate() instead, or RemoveInputDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.
virtual void AddInputDelegate (EZInputDelegate del)
 Adds a method to be called when input occurs (input is forwarded from OnInput()).
virtual void RemoveInputDelegate (EZInputDelegate del)
 Removes a method added with AddInputDelegate().
virtual void SetValueChangedDelegate (EZValueChangedDelegate del)
 Sets the method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddValueChangedDelegate() instead, or RemoveValueChangedDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.
virtual void AddValueChangedDelegate (EZValueChangedDelegate del)
 Adds a method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved).
virtual void RemoveValueChangedDelegate (EZValueChangedDelegate del)
 Removes a method added with AddValueChangedDelegate().
void CancelDrag ()
 Cancels any pending drag and drop operation.
void AddDragDropDelegate (EZDragDropDelegate del)
 Adds a delegate to be called with drag and drop notifications.
void RemoveDragDropDelegate (EZDragDropDelegate del)
 Removes a delegate from the list of those to be called with drag and drop notifications.
void SetDragDropDelegate (EZDragDropDelegate del)
 Sets the delegate to be called with drag and drop notifications. NOTE: This will replace any previously registered delegates.

Static Public Member Functions

static UIBistateInteractivePanel Create (string name, Vector3 pos)
 Creates a GameObject and attaches this component type to it.
static UIBistateInteractivePanel Create (string name, Vector3 pos, Quaternion rotation)
 Creates a GameObject and attaches this component type to it.

Public Attributes

bool requireTap = true
 When true, a PRESS is not sufficient, but rather a TAP event is required (press and release).
bool alwaysShowOnClick = true
 When true, the panel will always show itself when clicked, and some other action will be required to dismiss/hide it.
bool dismissOnOutsideClick = true
 When true, the panel will dismiss itself when a "PRESS" event occurs anywhere outside of the panel.
bool dismissOnPeerClick = false
 When true, the panel dismisses itself when a control or panel which is not a child is clicked.
bool dismissOnChildClick = false
 When true, the panel will dismiss itself when one of its child controls are clicked.
bool dismissOnMoveOff = false
 When true, the panel will be dismissed when the pointer is moved away from the panel and its child controls.
bool showOnChildClick = true
 When true, if any child is clicked/tapped while the panel is hideAtStart, the panel will be shown.
STATE initialState = STATE.HIDDEN
 The starting state of the panel.
int index
 The index of the panel in the optional UIPanelManager which manages it. This is an optional value that allows you to determine the order in which this panel will appear in a menu that is navigated without specifying the specific panels to go to, but rather moves to each panel based upon its index. If no default panel is specified in the UIPanelManager, the panel with the lowest index value will be the first panel shown.
bool deactivateAllOnDismiss
 When true, will recursively set all child objects to inactive. Conversely, it will recursively set all child objects to active when brought in.
bool detargetOnDisable = false
 When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.

Properties

STATE State [get, set]
 Gets the current state of the panel.
bool IsShowing [get]
 Returns true when the panel is showing, false when dismissed/hidden.
override EZTransitionList Transitions [get]
bool IsTransitioning [get]
 Indicates whether the panel is currently transitioning.
virtual bool controlIsEnabled [get, set]
 Controls whether this control is in an enabled state or not. If it is not, input is not processed. This can also be used to cause a control to take on a "grayed out" appearance when disabled.
virtual bool DetargetOnDisable [get, set]
 When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.
object Data [get, set]
 Holds "boxed" data for the control. This can be used to associate any object or value with the control for later reference and use.
bool IsDraggable [get, set]
 Indicates whether the object can be dragged as part of a drag & drop operation.
LayerMask DropMask [get, set]
 A mask which can be used to make the object only be "droppable" on objects in a certain layer. NOTE: This mask is combined with the camera's mask.
float DragOffset [get, set]
 The distance an object being dragged and dropped should be offset toward the camera to ensure it hovers above other objects and controls in the scene.
EZAnimation.EASING_TYPE CancelDragEasing [get, set]
 The type of easing to use to animate the object back to its starting position when a drag operation is cancelled.
float CancelDragDuration [get, set]
 The duration of the easing animation when a drag and drop operation is cancelled.
bool IsDragging [get, set]
 Indicates whether the object is being dragged as part of a drag & drop operation. Setting this value to false while the object is being dragged will cause the drag and drop operation to be cancelled.
GameObject DropTarget [get, set]
 The GameObject over which the object being dragged is hovering and will attempt to be dropped if it let go.
bool DropHandled [get, set]
 In the context of a drag & drop operation, this indicates whether the drop action was handled. If this is not set to true in response to a Dropped message sent to OnEZDragDrop(), the drop will be considered to be unhandled and will result in a cancelled drop, causing the dragged object to return to its original position.

Detailed Description

A type of panel that, when clicked, will toggle between its showing and hideAtStart states. Use this to implement things like popup-menus. NOTE: The panel is shown using the BringInForward transition, and dismissed using the DismissForward transition.

Member Enumeration Documentation

enum UIBistateInteractivePanel::STATE

Indicates the state of the button.

Enumerator:
SHOWING

The panel is "normal", awaiting input.

HIDDEN

The panel has an input device hovering over it.

Member Function Documentation

void UIPanelBase.AddChild ( GameObject  go  )  [inherited]

Reference to the parent UIView.

Adds a child to the container.

Parameters:
go GameObject to be added as a child of the container.

Implements IUIContainer.

void UIPanelBase.AddDragDropDelegate ( EZDragDropDelegate  del  )  [inherited]

Adds a delegate to be called with drag and drop notifications.

Parameters:
del The delegate to add.

Implements IEZDragDrop.

virtual void UIPanelBase.AddInputDelegate ( EZInputDelegate  del  )  [virtual, inherited]

Adds a method to be called when input occurs (input is forwarded from OnInput()).

Parameters:
del A method that conforms to the EZInputDelegate pattern.

Implements IUIObject.

void UIPanelBase.AddSubject ( GameObject  go  )  [inherited]

Adds a GameObject as a subject of this panel's transitions.

Parameters:
go GameObject to be added as a subject.

Implements IUIContainer.

void UIPanelBase.AddTempTransitionDelegate ( TransitionCompleteDelegate  del  )  [inherited]

Temporarily adds a delegate to be called when the next transition completes. This will be unset after it is called.

Parameters:
del Delegate to be called.
virtual void UIPanelBase.AddValueChangedDelegate ( EZValueChangedDelegate  del  )  [virtual, inherited]

Adds a method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved).

Parameters:
del A method that conforms to the EZValueChangedDelegate pattern.

Implements IUIObject.

virtual void UIPanelBase.BringIn (  )  [virtual, inherited]

Brings in the panel by playing its "Bring In Forward" transition.

void UIPanelBase.CancelDrag (  )  [inherited]

Cancels any pending drag and drop operation.

Implements IEZDragDrop.

static UIBistateInteractivePanel UIBistateInteractivePanel.Create ( string  name,
Vector3  pos,
Quaternion  rotation
) [static]

Creates a GameObject and attaches this component type to it.

Parameters:
name Name to give to the new GameObject.
pos Position, in world space, where the new object should be created.
rotation Rotation of the object.
Returns:
Returns a reference to the component.
static UIBistateInteractivePanel UIBistateInteractivePanel.Create ( string  name,
Vector3  pos
) [static]

Creates a GameObject and attaches this component type to it.

Parameters:
name Name to give to the new GameObject.
pos Position, in world space, where the new object should be created.
Returns:
Returns a reference to the component.
virtual void UIPanelBase.Dismiss (  )  [virtual, inherited]

Dismisses the panel by playing its "Dismiss Forward" transition.

EZTransition UIPanelBase.GetTransition ( string  transName  )  [inherited]

Returns a reference to the specified transition.

Parameters:
transName The name of the transition to retrieve.
Returns:
Returns a reference to the specified transition. Null if none is found.
EZTransition UIPanelBase.GetTransition ( UIPanelManager.SHOW_MODE  transition  )  [inherited]

Returns a reference to the specified transition.

Parameters:
transition The enum identifying the transition to retrieve.
Returns:
Returns a reference to the specified transition. Null if none is found.
EZTransition UIPanelBase.GetTransition ( int  index  )  [inherited]

Returns a reference to the transition at the specified index.

Parameters:
index The zero-based index of the transition to retrieve.
Returns:
Returns a reference to the transition at the specified index. Null if none is found at the specified index.
void UIBistateInteractivePanel.Hide (  )

Hides the panel by invoking its Dismiss Forward transition.

void UIPanelBase.MakeChild ( GameObject  go  )  [inherited]

Makes the specified GameObject a child of this panel, including making it a child of the panel's transform.

Parameters:
go GameObject to make a child of the panel.
override void UIBistateInteractivePanel.OnInput ( POINTER_INFO  ptr  )  [virtual]

This is where input handling code should go in any derived class.

Parameters:
ptr POINTER_INFO struct that contains information on the pointer that caused the event, as well as the event that occurred.

Reimplemented from UIPanelBase.

void UIPanelBase.RemoveChild ( GameObject  go  )  [inherited]

Removes an object as a child of the container.

Parameters:
go Object to be removed.

Implements IUIContainer.

void UIPanelBase.RemoveDragDropDelegate ( EZDragDropDelegate  del  )  [inherited]

Removes a delegate from the list of those to be called with drag and drop notifications.

Parameters:
del The delegate to add.

Implements IEZDragDrop.

virtual void UIPanelBase.RemoveInputDelegate ( EZInputDelegate  del  )  [virtual, inherited]

Removes a method added with AddInputDelegate().

Parameters:
del A method that conforms to the EZInputDelegate pattern.

Implements IUIObject.

void UIPanelBase.RemoveSubject ( GameObject  go  )  [inherited]

Removes a GameObject as a subjects of this panel's transitions.

Parameters:
go GameObject to be removed as a subject.

Implements IUIContainer.

virtual void UIPanelBase.RemoveValueChangedDelegate ( EZValueChangedDelegate  del  )  [virtual, inherited]

Removes a method added with AddValueChangedDelegate().

Parameters:
del A method that conforms to the EZValueChangedDelegate pattern.

Implements IUIObject.

void UIBistateInteractivePanel.Reveal (  )

Reveals the panel by invoking its Bring In Forward transition.

void UIPanelBase.SetDragDropDelegate ( EZDragDropDelegate  del  )  [inherited]

Sets the delegate to be called with drag and drop notifications. NOTE: This will replace any previously registered delegates.

Parameters:
del The delegate to add.

Implements IEZDragDrop.

virtual void UIPanelBase.SetInputDelegate ( EZInputDelegate  del  )  [virtual, inherited]

Sets the method to be called when input occurs (input is forwarded from OnInput()). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddInputDelegate() instead, or RemoveInputDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.

Parameters:
del A method that conforms to the EZInputDelegate pattern.

Implements IUIObject.

virtual void UIPanelBase.SetValueChangedDelegate ( EZValueChangedDelegate  del  )  [virtual, inherited]

Sets the method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddValueChangedDelegate() instead, or RemoveValueChangedDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.

Parameters:
del A method that conforms to the EZValueChangedDelegate pattern.

Implements IUIObject.

virtual void UIPanelBase.StartTransition ( string  transName  )  [virtual, inherited]

Starts the transition matching the specified name (case-insensitive).

Parameters:
transName The name of the transition to start. Ex: "Bring In Forward"
override void UIBistateInteractivePanel.StartTransition ( UIPanelManager.SHOW_MODE  mode  )  [virtual]

Starts one of the panel's "bring in" or "dismiss" transitions.

Parameters:
mode The mode corresponding to the transition that should be played.

Reimplemented from UIPanelBase.

delegate void UIPanelBase.TransitionCompleteDelegate ( UIPanelBase  panel,
EZTransition  transition
) [inherited]

Delegate definition for receiving notification of when a UIPanel has finished transitioning.

Parameters:
panel Reference to the panel itself.
transition Reference to the transition which has just completed.

Member Data Documentation

bool UIBistateInteractivePanel.alwaysShowOnClick = true

When true, the panel will always show itself when clicked, and some other action will be required to dismiss/hide it.

bool UIPanelBase.deactivateAllOnDismiss [inherited]

When true, will recursively set all child objects to inactive. Conversely, it will recursively set all child objects to active when brought in.

bool UIPanelBase.detargetOnDisable = false [inherited]

When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.

bool UIBistateInteractivePanel.dismissOnChildClick = false

When true, the panel will dismiss itself when one of its child controls are clicked.

bool UIBistateInteractivePanel.dismissOnMoveOff = false

When true, the panel will be dismissed when the pointer is moved away from the panel and its child controls.

bool UIBistateInteractivePanel.dismissOnOutsideClick = true

When true, the panel will dismiss itself when a "PRESS" event occurs anywhere outside of the panel.

bool UIBistateInteractivePanel.dismissOnPeerClick = false

When true, the panel dismisses itself when a control or panel which is not a child is clicked.

int UIPanelBase.index [inherited]

The index of the panel in the optional UIPanelManager which manages it. This is an optional value that allows you to determine the order in which this panel will appear in a menu that is navigated without specifying the specific panels to go to, but rather moves to each panel based upon its index. If no default panel is specified in the UIPanelManager, the panel with the lowest index value will be the first panel shown.

STATE UIBistateInteractivePanel.initialState = STATE.HIDDEN

The starting state of the panel.

bool UIBistateInteractivePanel.requireTap = true

When true, a PRESS is not sufficient, but rather a TAP event is required (press and release).

bool UIBistateInteractivePanel.showOnChildClick = true

When true, if any child is clicked/tapped while the panel is hideAtStart, the panel will be shown.

Property Documentation

float UIPanelBase.CancelDragDuration [get, set, inherited]

The duration of the easing animation when a drag and drop operation is cancelled.

Implements IEZDragDrop.

EZAnimation.EASING_TYPE UIPanelBase.CancelDragEasing [get, set, inherited]

The type of easing to use to animate the object back to its starting position when a drag operation is cancelled.

Implements IEZDragDrop.

virtual bool UIPanelBase.controlIsEnabled [get, set, inherited]

Controls whether this control is in an enabled state or not. If it is not, input is not processed. This can also be used to cause a control to take on a "grayed out" appearance when disabled.

Implements IUIObject.

object UIPanelBase.Data [get, set, inherited]

Holds "boxed" data for the control. This can be used to associate any object or value with the control for later reference and use.

Implements IEZDragDrop.

virtual bool UIPanelBase.DetargetOnDisable [get, set, inherited]

When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.

Implements IUIObject.

float UIPanelBase.DragOffset [get, set, inherited]

The distance an object being dragged and dropped should be offset toward the camera to ensure it hovers above other objects and controls in the scene.

Implements IEZDragDrop.

bool UIPanelBase.DropHandled [get, set, inherited]

In the context of a drag & drop operation, this indicates whether the drop action was handled. If this is not set to true in response to a Dropped message sent to OnEZDragDrop(), the drop will be considered to be unhandled and will result in a cancelled drop, causing the dragged object to return to its original position.

Implements IEZDragDrop.

LayerMask UIPanelBase.DropMask [get, set, inherited]

A mask which can be used to make the object only be "droppable" on objects in a certain layer. NOTE: This mask is combined with the camera's mask.

Implements IEZDragDrop.

GameObject UIPanelBase.DropTarget [get, set, inherited]

The GameObject over which the object being dragged is hovering and will attempt to be dropped if it let go.

Implements IEZDragDrop.

bool UIPanelBase.IsDraggable [get, set, inherited]

Indicates whether the object can be dragged as part of a drag & drop operation.

Implements IEZDragDrop.

bool UIPanelBase.IsDragging [get, set, inherited]

Indicates whether the object is being dragged as part of a drag & drop operation. Setting this value to false while the object is being dragged will cause the drag and drop operation to be cancelled.

Implements IEZDragDrop.

bool UIBistateInteractivePanel.IsShowing [get]

Returns true when the panel is showing, false when dismissed/hidden.

bool UIPanelBase.IsTransitioning [get, inherited]

Indicates whether the panel is currently transitioning.

STATE UIBistateInteractivePanel.State [get, set]

Gets the current state of the panel.

override EZTransitionList UIBistateInteractivePanel.Transitions [get]

UIPanel provides functionality as a container for controls. Controls can be organized into panels and manipulated as a group.

To organize controls into a panel, simply make them children of a GameObject containing a UIPanel component.

Reimplemented from UIPanelBase.

The documentation for this class was generated from the following file:
Generated on Thu Sep 8 16:31:18 2011 for EZ GUI by  doxygen 1.6.1
