UIPanelBase Class Reference

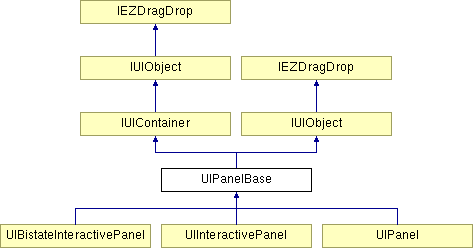

Inheritance diagram for UIPanelBase:
IUIContainer IUIObject IUIObject IEZDragDrop IEZDragDrop UIBistateInteractivePanel UIInteractivePanel UIPanel

List of all members.

Public Member Functions

delegate void TransitionCompleteDelegate (UIPanelBase panel, EZTransition transition)
void AddChild (GameObject go)
 Reference to the parent UIView.
void RemoveChild (GameObject go)
 Removes an object as a child of the container.
void MakeChild (GameObject go)
 Makes the specified GameObject a child of this panel, including making it a child of the panel's transform.
void AddSubject (GameObject go)
 Adds a GameObject as a subject of this panel's transitions.
void RemoveSubject (GameObject go)
 Removes a GameObject as a subjects of this panel's transitions.
EZTransition GetTransition (int index)
 Returns a reference to the transition at the specified index.
EZTransition GetTransition (UIPanelManager.SHOW_MODE transition)
 Returns a reference to the specified transition.
EZTransition GetTransition (string transName)
 Returns a reference to the specified transition.
virtual void StartTransition (UIPanelManager.SHOW_MODE mode)
 Starts one of the panel's "bring in" or "dismiss" transitions.
virtual void StartTransition (string transName)
 Starts the transition matching the specified name (case-insensitive).
virtual void BringIn ()
 Brings in the panel by playing its "Bring In Forward" transition.
virtual void Dismiss ()
 Dismisses the panel by playing its "Dismiss Forward" transition.
void AddTempTransitionDelegate (TransitionCompleteDelegate del)
 Temporarily adds a delegate to be called when the next transition completes. This will be unset after it is called.
virtual void SetInputDelegate (EZInputDelegate del)
 Sets the method to be called when input occurs (input is forwarded from OnInput()). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddInputDelegate() instead, or RemoveInputDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.
virtual void AddInputDelegate (EZInputDelegate del)
 Adds a method to be called when input occurs (input is forwarded from OnInput()).
virtual void RemoveInputDelegate (EZInputDelegate del)
 Removes a method added with AddInputDelegate().
virtual void SetValueChangedDelegate (EZValueChangedDelegate del)
 Sets the method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddValueChangedDelegate() instead, or RemoveValueChangedDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.
virtual void AddValueChangedDelegate (EZValueChangedDelegate del)
 Adds a method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved).
virtual void RemoveValueChangedDelegate (EZValueChangedDelegate del)
 Removes a method added with AddValueChangedDelegate().
virtual void OnInput (POINTER_INFO ptr)
 This is where input handling code should go in any derived class.
void CancelDrag ()
 Cancels any pending drag and drop operation.
void AddDragDropDelegate (EZDragDropDelegate del)
 Adds a delegate to be called with drag and drop notifications.
void RemoveDragDropDelegate (EZDragDropDelegate del)
 Removes a delegate from the list of those to be called with drag and drop notifications.
void SetDragDropDelegate (EZDragDropDelegate del)
 Sets the delegate to be called with drag and drop notifications. NOTE: This will replace any previously registered delegates.

Public Attributes

int index
 The index of the panel in the optional UIPanelManager which manages it. This is an optional value that allows you to determine the order in which this panel will appear in a menu that is navigated without specifying the specific panels to go to, but rather moves to each panel based upon its index. If no default panel is specified in the UIPanelManager, the panel with the lowest index value will be the first panel shown.
bool deactivateAllOnDismiss
 When true, will recursively set all child objects to inactive. Conversely, it will recursively set all child objects to active when brought in.
bool detargetOnDisable = false
 When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.

Properties

abstract EZTransitionList Transitions [get]
bool IsTransitioning [get]
 Indicates whether the panel is currently transitioning.
virtual bool controlIsEnabled [get, set]
 Controls whether this control is in an enabled state or not. If it is not, input is not processed. This can also be used to cause a control to take on a "grayed out" appearance when disabled.
virtual bool DetargetOnDisable [get, set]
 When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.
object Data [get, set]
 Holds "boxed" data for the control. This can be used to associate any object or value with the control for later reference and use.
bool IsDraggable [get, set]
 Indicates whether the object can be dragged as part of a drag & drop operation.
LayerMask DropMask [get, set]
 A mask which can be used to make the object only be "droppable" on objects in a certain layer. NOTE: This mask is combined with the camera's mask.
float DragOffset [get, set]
 The distance an object being dragged and dropped should be offset toward the camera to ensure it hovers above other objects and controls in the scene.
EZAnimation.EASING_TYPE CancelDragEasing [get, set]
 The type of easing to use to animate the object back to its starting position when a drag operation is cancelled.
float CancelDragDuration [get, set]
 The duration of the easing animation when a drag and drop operation is cancelled.
bool IsDragging [get, set]
 Indicates whether the object is being dragged as part of a drag & drop operation. Setting this value to false while the object is being dragged will cause the drag and drop operation to be cancelled.
GameObject DropTarget [get, set]
 The GameObject over which the object being dragged is hovering and will attempt to be dropped if it let go.
bool DropHandled [get, set]
 In the context of a drag & drop operation, this indicates whether the drop action was handled. If this is not set to true in response to a Dropped message sent to OnEZDragDrop(), the drop will be considered to be unhandled and will result in a cancelled drop, causing the dragged object to return to its original position.

Detailed Description

UIPanelBase provides functionality as a container for controls. Controls can be organized into panels and manipulated as a group.

To organize controls into a panel, simply make them children of a GameObject containing a UIPanel component.

Member Function Documentation

void UIPanelBase.AddChild ( GameObject  go  )

Reference to the parent UIView.

Adds a child to the container.

Parameters:
go GameObject to be added as a child of the container.

Implements IUIContainer.

void UIPanelBase.AddDragDropDelegate ( EZDragDropDelegate  del  )

Adds a delegate to be called with drag and drop notifications.

Parameters:
del The delegate to add.

Implements IEZDragDrop.

virtual void UIPanelBase.AddInputDelegate ( EZInputDelegate  del  )  [virtual]

Adds a method to be called when input occurs (input is forwarded from OnInput()).

Parameters:
del A method that conforms to the EZInputDelegate pattern.

Implements IUIObject.

void UIPanelBase.AddSubject ( GameObject  go  )

Adds a GameObject as a subject of this panel's transitions.

Parameters:
go GameObject to be added as a subject.

Implements IUIContainer.

void UIPanelBase.AddTempTransitionDelegate ( TransitionCompleteDelegate  del  )

Temporarily adds a delegate to be called when the next transition completes. This will be unset after it is called.

Parameters:
del Delegate to be called.
virtual void UIPanelBase.AddValueChangedDelegate ( EZValueChangedDelegate  del  )  [virtual]

Adds a method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved).

Parameters:
del A method that conforms to the EZValueChangedDelegate pattern.

Implements IUIObject.

virtual void UIPanelBase.BringIn (  )  [virtual]

Brings in the panel by playing its "Bring In Forward" transition.

void UIPanelBase.CancelDrag (  )

Cancels any pending drag and drop operation.

Implements IEZDragDrop.

virtual void UIPanelBase.Dismiss (  )  [virtual]

Dismisses the panel by playing its "Dismiss Forward" transition.

EZTransition UIPanelBase.GetTransition ( string  transName  )

Returns a reference to the specified transition.

Parameters:
transName The name of the transition to retrieve.
Returns:
Returns a reference to the specified transition. Null if none is found.
EZTransition UIPanelBase.GetTransition ( UIPanelManager.SHOW_MODE  transition  )

Returns a reference to the specified transition.

Parameters:
transition The enum identifying the transition to retrieve.
Returns:
Returns a reference to the specified transition. Null if none is found.
EZTransition UIPanelBase.GetTransition ( int  index  )

Returns a reference to the transition at the specified index.

Parameters:
index The zero-based index of the transition to retrieve.
Returns:
Returns a reference to the transition at the specified index. Null if none is found at the specified index.
void UIPanelBase.MakeChild ( GameObject  go  )

Makes the specified GameObject a child of this panel, including making it a child of the panel's transform.

Parameters:
go GameObject to make a child of the panel.
virtual void UIPanelBase.OnInput ( POINTER_INFO  ptr  )  [virtual]

This is where input handling code should go in any derived class.

Parameters:
ptr POINTER_INFO struct that contains information on the pointer that caused the event, as well as the event that occurred.

Implements IUIObject.

Reimplemented in UIBistateInteractivePanel, and UIInteractivePanel.

void UIPanelBase.RemoveChild ( GameObject  go  )

Removes an object as a child of the container.

Parameters:
go Object to be removed.

Implements IUIContainer.

void UIPanelBase.RemoveDragDropDelegate ( EZDragDropDelegate  del  )

Removes a delegate from the list of those to be called with drag and drop notifications.

Parameters:
del The delegate to add.

Implements IEZDragDrop.

virtual void UIPanelBase.RemoveInputDelegate ( EZInputDelegate  del  )  [virtual]

Removes a method added with AddInputDelegate().

Parameters:
del A method that conforms to the EZInputDelegate pattern.

Implements IUIObject.

void UIPanelBase.RemoveSubject ( GameObject  go  )

Removes a GameObject as a subjects of this panel's transitions.

Parameters:
go GameObject to be removed as a subject.

Implements IUIContainer.

virtual void UIPanelBase.RemoveValueChangedDelegate ( EZValueChangedDelegate  del  )  [virtual]

Removes a method added with AddValueChangedDelegate().

Parameters:
del A method that conforms to the EZValueChangedDelegate pattern.

Implements IUIObject.

void UIPanelBase.SetDragDropDelegate ( EZDragDropDelegate  del  )

Sets the delegate to be called with drag and drop notifications. NOTE: This will replace any previously registered delegates.

Parameters:
del The delegate to add.

Implements IEZDragDrop.

virtual void UIPanelBase.SetInputDelegate ( EZInputDelegate  del  )  [virtual]

Sets the method to be called when input occurs (input is forwarded from OnInput()). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddInputDelegate() instead, or RemoveInputDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.

Parameters:
del A method that conforms to the EZInputDelegate pattern.

Implements IUIObject.

virtual void UIPanelBase.SetValueChangedDelegate ( EZValueChangedDelegate  del  )  [virtual]

Sets the method to be called when the value of a control changes (such as a checkbox changing from false to true, or a slider being moved). NOTE: This will replace any and all delegates which have been set or added previously. If you are unsure if any delegates are already registered, use AddValueChangedDelegate() instead, or RemoveValueChangedDelegate() to unset a previously registered delegate. Only use this when you are sure you want to replace all previously registered delegates.

Parameters:
del A method that conforms to the EZValueChangedDelegate pattern.

Implements IUIObject.

virtual void UIPanelBase.StartTransition ( string  transName  )  [virtual]

Starts the transition matching the specified name (case-insensitive).

Parameters:
transName The name of the transition to start. Ex: "Bring In Forward"
virtual void UIPanelBase.StartTransition ( UIPanelManager.SHOW_MODE  mode  )  [virtual]

Starts one of the panel's "bring in" or "dismiss" transitions.

Parameters:
mode The mode corresponding to the transition that should be played.

Reimplemented in UIBistateInteractivePanel.

delegate void UIPanelBase.TransitionCompleteDelegate ( UIPanelBase  panel,
EZTransition  transition
)

Delegate definition for receiving notification of when a UIPanel has finished transitioning.

Parameters:
panel Reference to the panel itself.
transition Reference to the transition which has just completed.

Member Data Documentation

bool UIPanelBase.deactivateAllOnDismiss

When true, will recursively set all child objects to inactive. Conversely, it will recursively set all child objects to active when brought in.

bool UIPanelBase.detargetOnDisable = false

When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.

int UIPanelBase.index

The index of the panel in the optional UIPanelManager which manages it. This is an optional value that allows you to determine the order in which this panel will appear in a menu that is navigated without specifying the specific panels to go to, but rather moves to each panel based upon its index. If no default panel is specified in the UIPanelManager, the panel with the lowest index value will be the first panel shown.

Property Documentation

float UIPanelBase.CancelDragDuration [get, set]

The duration of the easing animation when a drag and drop operation is cancelled.

Implements IEZDragDrop.

EZAnimation.EASING_TYPE UIPanelBase.CancelDragEasing [get, set]

The type of easing to use to animate the object back to its starting position when a drag operation is cancelled.

Implements IEZDragDrop.

virtual bool UIPanelBase.controlIsEnabled [get, set]

Controls whether this control is in an enabled state or not. If it is not, input is not processed. This can also be used to cause a control to take on a "grayed out" appearance when disabled.

Implements IUIObject.

object UIPanelBase.Data [get, set]

Holds "boxed" data for the control. This can be used to associate any object or value with the control for later reference and use.

Implements IEZDragDrop.

virtual bool UIPanelBase.DetargetOnDisable [get, set]

When set to true, the control will instruct any pointers which have it as their target to de-target them. Use this if you are deactivating a control and want no input to go to it. It is strongly recommended NOT to use this feature on any control that appears in a scroll list, or else you may be unable to scroll past the edge of the list's viewable area.

Implements IUIObject.

float UIPanelBase.DragOffset [get, set]

The distance an object being dragged and dropped should be offset toward the camera to ensure it hovers above other objects and controls in the scene.

Implements IEZDragDrop.

bool UIPanelBase.DropHandled [get, set]

In the context of a drag & drop operation, this indicates whether the drop action was handled. If this is not set to true in response to a Dropped message sent to OnEZDragDrop(), the drop will be considered to be unhandled and will result in a cancelled drop, causing the dragged object to return to its original position.

Implements IEZDragDrop.

LayerMask UIPanelBase.DropMask [get, set]

A mask which can be used to make the object only be "droppable" on objects in a certain layer. NOTE: This mask is combined with the camera's mask.

Implements IEZDragDrop.

GameObject UIPanelBase.DropTarget [get, set]

The GameObject over which the object being dragged is hovering and will attempt to be dropped if it let go.

Implements IEZDragDrop.

bool UIPanelBase.IsDraggable [get, set]

Indicates whether the object can be dragged as part of a drag & drop operation.

Implements IEZDragDrop.

bool UIPanelBase.IsDragging [get, set]

Indicates whether the object is being dragged as part of a drag & drop operation. Setting this value to false while the object is being dragged will cause the drag and drop operation to be cancelled.

Implements IEZDragDrop.

bool UIPanelBase.IsTransitioning [get]

Indicates whether the panel is currently transitioning.

abstract EZTransitionList UIPanelBase.Transitions [get]

UIPanel provides functionality as a container for controls. Controls can be organized into panels and manipulated as a group.

To organize controls into a panel, simply make them children of a GameObject containing a UIPanel component.

Reimplemented in UIBistateInteractivePanel, UIInteractivePanel, and UIPanel.

The documentation for this class was generated from the following file:
Generated on Thu Sep 8 16:31:19 2011 for EZ GUI by  doxygen 1.6.1
